TDS Seri Touch-ekran dijital Osiloskop

Touchscreen dijital osiloskop ak 70MHz / 100MHz / 200MHz Bandwidth, 1GS / s / 2GS / s echantiyon pousantaj, 7.6M longè dosye ak 50,000 wfms / s ondèr rafrechisman pousantaj

Voye rechèch

Chat kounye a

Espesifikasyon teknik

Pwodwi Entwodiksyon

- 70MHz-200MHz Bandwidth, Max Rate 2GS / s

- 7.6M dosye longè

- 50,000 wfms / s onn kaptire pousantaj

- ond zooming (orizontal / vètikal), ak ekonomize

- FFT pwen (longè, ak varyab rezolisyon)

- ekstansyon milti-fenèt

- 8 pous 800 x 600 piksèl segondè def LCD

- multi- kominikasyon koòdone: USB, VGA, LAN

- LabVIEW sipòte

Modèl Pa gen.	Chèn	Bandwidth	Echantiyon pousantaj	Dosye dosye
TDS7074	4	70MHz	1GS / s	7.6M
TDS7104	4	100MHz	1GS / s	7.6M
TDS8104	4	100MHz	2GS / s	7.6M
TDS8204	4	200MHz	2GS / s	7.6M

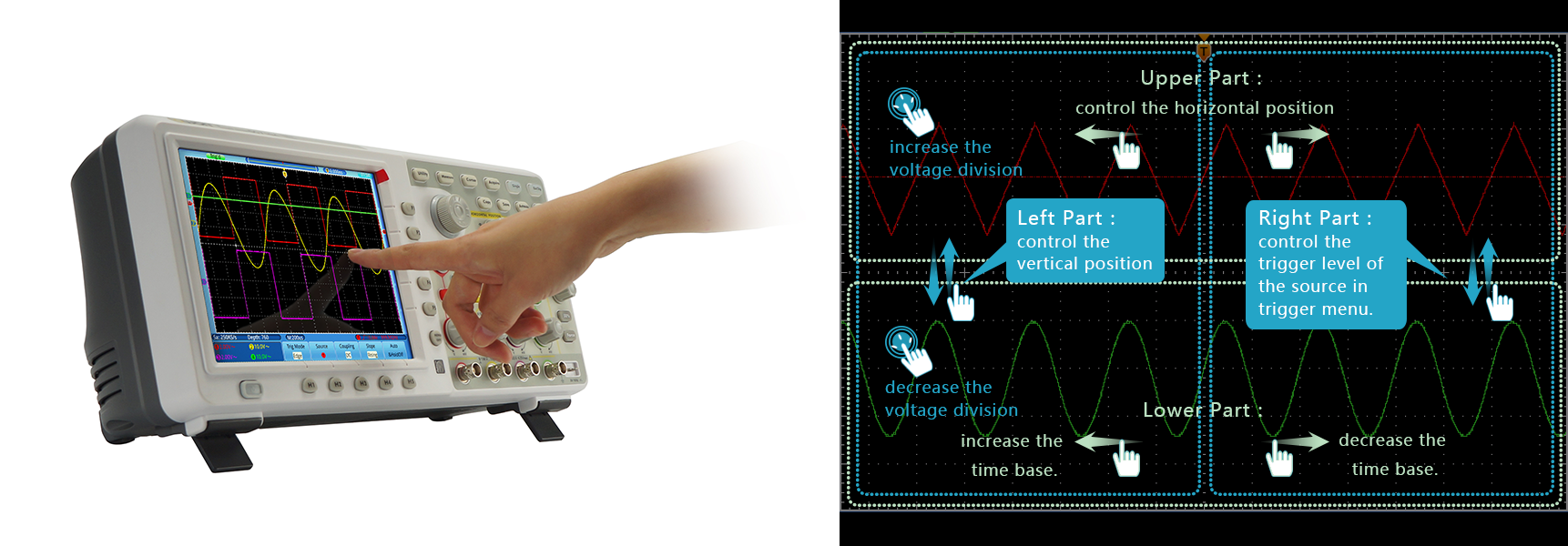

1. ekran T ou

FAQ

Ki sa ki faktè deside prix DSO prèv la ?

Pleasant la probe, ak fonksyon deside prix li yo.

Selon fonksyon an, gen anpil sonde kategori, ki gen ladan sondaj vòltaj segondè, sond pèfòmans, pwofil aktif segondè vitès, ak elatriye Diferan kategori sond prix chenn nan mwens pase USD10.00 jouk USD10,000.00.

Sonde a aji kòm medya koneksyon nan kous osiloskop, yon gwo pwodiksyon siyal fidelite se yon dwe - konsidere sa a, menm pou pasif sond, estrikti enteryè li yo jwenn pati konplike pou konpanse kous la.

Modèl	TDS7074	TDS7104	TDS8104	TDS8204
Bandwidth	70MHz	100MHz		200MHz
Chèn	4
Echantiyon pousantaj	1GS / s		2GS / s
Waveform Capture pousantaj	50,000 wfms / s
Montre	8 "manyen ekran koulè LCD
Dosye dosye	7.6M
Echèl orizontal (s / div)	2ns / div - 100s / div, etap pa 1 - 2 - 5
Rezolisyon vètikal (A / D)	8 Bits rezolisyon (4 chanèl ansanm)
Vètikal sansiblite	2mV / div - 10V / div (nan opinyon)
Kalite deklanche	Edge, batman kè, videyo, pant
Trigger Mode	Auto, Nòmal, Single
Matematik Waveform	+, -, ×, ÷, FFT
Kominikasyon Port	USB lame, aparèy USB, VGA, LAN, AUX
Dimansyon (W × H × D)	380 × 180 × 115 (mm)
Pwa (san pake)	1.5 kg
